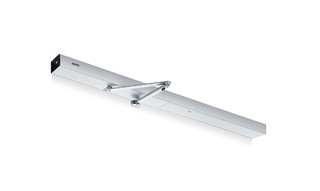

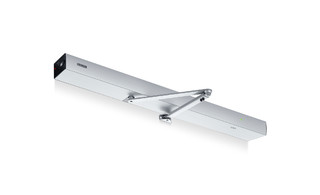

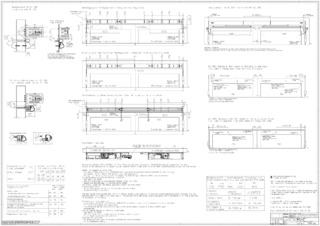

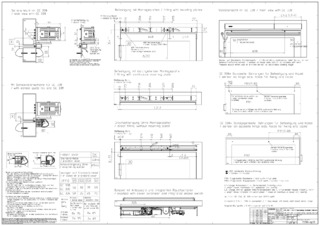

Slimdrive EMD-F/R * Electromechanical swing door drive for single leaf fire and smoke protection doors with integrated smoke switch

Slimdrive EMD-F/R
  • Closing force with variable adjustment of EN 4-6
  • Integrated smoke switch control unit, whose signal closes the door automatically in the event of a fire
  • Opening and closing speed can be individually adjusted
  • Low-energy function opens and closes the door with reduced speed, fulfilling the highest safety demands
  • Obstacle detection detects an object through contact and stops the opening or closing process
  • Automatic reversing detects an obstacle and returns to the opening position
Show more
  • Push & Go function triggers the automatic drive following light manual pressure on the door leaf

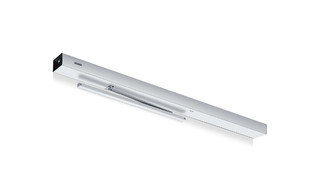

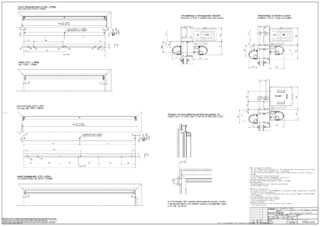

  • Drive can be used with roller guide rail or link arm
  • Servo function for motorized support when manually opening the door
  • Freely configurable inputs and outputs for different functions
  • Can be networked, and integrated into the building automation via open standard (BACnet)
Contact us

Application Areas

  • Fire and smoke protection doors

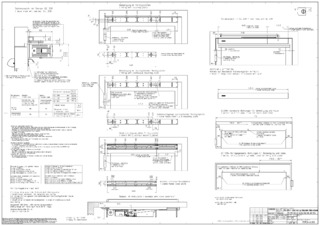

  • Transom installation hinge and opposite hinge side
  • Single-action, single leaf, right and left closing doors
  • Single-action doors up to 1400 mm leaf width or 230 kg weight
  • Minimum leaf width 750 mm
  • Interior and exterior doors with high access frequency
  • Hold-open systems with integrated hold-open function – country-specific specifications must be observed

Technical data

Slimdrive EMD-F/R
Leaf weight (max.) 1-leaf 230 kg
Leaf width (min.-max.) 850 mm - 1400 mm
Reveal depth (max.) 300 mm
Door overlap (max.) 50 mm
Drive type Electromechanical
Opening angle (max.) 130 °
DIN left Yes
DIN right Yes
Transom installation opposite hinge side with link arm Yes
Transom installation opposite hinge side with roller guide rail Yes
Transom installation hinge side with roller guide rail Yes
Door leaf installation opposite hinge side with roller guide rail No
Door leaf installation hinge side with roller guide rail No
Door leaf installation hinge side with link arm No
Mechanical latching action Yes
Electrical latching action Yes
Disconnection from mains Main switch in the drive
Activation delay (max.) 20 s
Operating voltage 230 V
Power rating 230 W
Power supply for external consumers (24 V DC) 1000 mA
Service temperature -15 - 50 °C
Air humidity non-condensing (max.) 95 %
IP rating IP20
Mode of operation Automatic, Permanently open, Night, Off, Shop closing
Automatic function Yes
Low-energy function Yes
Servo function Yes
Obstacle detection Yes
Automatic reversing Yes
Push & Go adjustable

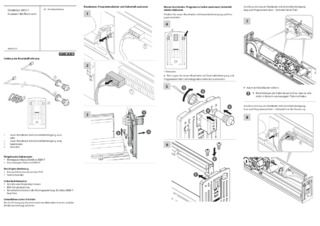

Operation Programme switch integrated in the drive, Programme switch DPS, MPS programme switch
Parameter setting Service terminal ST 220, Programme switch DPS, GEZEconnects (PC + Bluetooth)
Standard conformity DIN 18263-4, DIN 18650, EN 16005
Approvals General building approval from DIBt as a hold-open system
Suitability for fire protection doors Yes
Smoke switch integrated Yes
