Lock 1-leaf

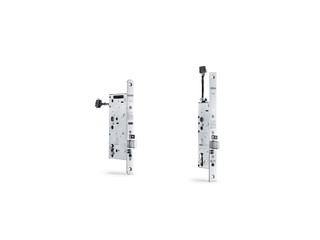

IQ lock EL * Electro-mechanical motor lock for the combination with swing door drives on single leaf doors

Motor-driven unlocking of the door in less than one second
Mechanical self-locking ensures automatic deadbolt projection every time the door is closed
Panic function which opens (even locked) emergency exits in the direction of escape
Divided cross latch prevents the bolt from locking even under side-load
Electric sequential control ensures secure locking of the door
Various modes of operation for every possible situation

Integrated feedback contacts make complete monitoring of the door possible
Optional sabotage monitoring or cylinder contact
Small rear backset and small dimensions of the lock case

Application Areas

Single leaf emergency exit and panic doors
Doors along escape and rescue routes
Fire and smoke protection doors (with MST 210 motor lock control)
SHEV air inlet doors
Access control systems
Can be combined with GEZE automatic swing door systems

Technical data

	IQ lock EL
DIN direction	left / right
Service temperature	-10 - 50 °C
Motor-driven unlocking	< 1 s
Panic function / mechanical self-locking	Yes
Divided cross latch (3 mm gap between latch and bolt)	Yes
Electric sequential control	Yes
Three modes of operation (daytime operation / permanently unlocked / permanently night)	Yes
Feedback contacts for lock states	Yes
Optional sabotage monitoring or cylinder contact	Yes
Activation	External contact
Current consumption	80 mA at 24V / 400 mA at 24V short-term, 160 mA at 12V / 1 A at 12V short-term
Contact rating	30 V / 500 mA
Resistant to forcing	10000 N
Connector cable length	15 m

Downloads

Certificate

Download (.PDF | 464 KB)

Download (.PDF | 234 KB)

Flyer/folder

Download (.PDF | 7 MB)

Download (.PDF | 434 KB)

Product brochure

Download (.PDF | 748 KB)

Download (.PDF | 10 MB)

Declarations of performance

Download (.PDF | 3 MB)

Declarations of performance BG CS DE EL EN ES FR HR HU IT NL PL RO SK (791870)

Download (.PDF | 3 MB)

Variants & Accessories

Accessories
Variants

Accessories

MST 210

Motor lock control for IQ lock EL and IQ lock EL DL

Product details

Accessories

Removable drip loop

Guide of the connector cable to the door leaf

Product details

Accessories

GC Lock Control SHEV

Additional control unit for motor locks for 12 V or 24 V motor locks on an SHEV air inlet door

Product details

Show differences only

Ident-No.	Designation	Description	Distance lock	Backset	DIN direction	Face plate dimensions	Supply voltage	Colour
121827	IQ lock EL motor lock	for solid leaf doors ; with round face plate 20 x 235 x 3 mm / Operating voltage: 12 - 24 V DC; Current consumption:; 80 mA / 24 V; 160 mA / 12V; max. current consumption (short-term):; 400 mA / 24 V; 1 A / 12 V	72 mm	100 mm	left / right	20 x 235 x 3 mm	12 - 24 V DC	EV1
103695	IQ lock EL motor lock	for solid leaf doors ; with round face plate 20 x 235 x 3 mm / Operating voltage: 12 - 24 V DC; Current consumption:; 80 mA / 24 V; 160 mA / 12V; max. current consumption (short-term):; 400 mA / 24 V; 1 A / 12 V	72 mm	100 mm	left / right	20 x 235 x 3 mm	12 - 24 V DC	EV1
121824	IQ lock EL motor lock	for solid leaf doors ; with round face plate 20 x 235 x 3 mm / Operating voltage: 12 - 24 V DC; Current consumption:; 80 mA / 24 V; 160 mA / 12V; max. current consumption (short-term):; 400 mA / 24 V; 1 A / 12 V	72 mm	55 mm	left / right	20 x 235 x 3 mm	12 - 24 V DC	EV1
103642	IQ lock EL motor lock	for solid leaf doors ; with round face plate 20 x 235 x 3 mm / Operating voltage: 12 - 24 V DC; Current consumption:; 80 mA / 24 V; 160 mA / 12V; max. current consumption (short-term):; 400 mA / 24 V; 1 A / 12 V	72 mm	55 mm	left / right	20 x 235 x 3 mm	12 - 24 V DC	EV1
178372	IQ lock EL motor lock	for solid leaf doors ; with round face plate 24 x 235 x 3 mm / Operating voltage: 12 - 24 V DC; Current consumption:; 80 mA / 24 V; 160 mA / 12V; max. current consumption (short-term):; 400 mA / 24 V; 1 A / 12 V	72 mm	55 mm	left / right	24 x 235 x 3 mm	12 - 24 V DC	EV1
121825	IQ lock EL motor lock	for solid leaf doors ; with round face plate 20 x 235 x 3 mm / Operating voltage: 12 - 24 V DC; Current consumption:; 80 mA / 24 V; 160 mA / 12V; max. current consumption (short-term):; 400 mA / 24 V; 1 A / 12 V	72 mm	65 mm	left / right	20 x 235 x 3 mm	12 - 24 V DC	EV1
103643	IQ lock EL motor lock	for solid leaf doors ; with round face plate 20 x 235 x 3 mm / Operating voltage: 12 - 24 V DC; Current consumption:; 80 mA / 24 V; 160 mA / 12V; max. current consumption (short-term):; 400 mA / 24 V; 1 A / 12 V	72 mm	65 mm	left / right	20 x 235 x 3 mm	12 - 24 V DC	EV1
163806	IQ lock EL motor lock	for solid leaf doors ; with round face plate 24 x 235 x 3 mm / Operating voltage: 12 - 24 V DC; Current consumption:; 80 mA / 24 V; 160 mA / 12V; max. current consumption (short-term):; 400 mA / 24 V; 1 A / 12 V	72 mm	80 mm	left / right	24 x 235 x 3 mm	12 - 24 V DC	EV1
121826	IQ lock EL motor lock	for solid leaf doors ; with round face plate 20 x 235 x 3 mm / Operating voltage: 12 - 24 V DC; Current consumption:; 80 mA / 24 V; 160 mA / 12V; max. current consumption (short-term):; 400 mA / 24 V; 1 A / 12 V	72 mm	80 mm	left / right	20 x 235 x 3 mm	12 - 24 V DC	EV1
103644	IQ lock EL motor lock	for solid leaf doors ; with round face plate 20 x 235 x 3 mm / Operating voltage: 12 - 24 V DC; Current consumption:; 80 mA / 24 V; 160 mA / 12V; max. current consumption (short-term):; 400 mA / 24 V; 1 A / 12 V	72 mm	80 mm	left / right	20 x 235 x 3 mm	12 - 24 V DC	EV1
121821	IQ lock EL motor lock	for tubular-framed doors ; with rectangular face plate 24 x 270 x 3 mm / Operating voltage: 12 - 24 V DC; Current consumption:; 80 mA / 24 V; 160 mA / 12V; max. current consumption (short-term):; 400 mA / 24 V; 1 A / 12 V	92 mm	35 mm	left / right	24 x 270 x 3 mm	12 - 24 V DC	EV1
103640	IQ lock EL motor lock	for tubular-framed doors ; with rectangular face plate 24 x 270 x 3 mm / Operating voltage: 12 - 24 V DC; Current consumption:; 80 mA / 24 V; 160 mA / 12V; max. current consumption (short-term):; 400 mA / 24 V; 1 A / 12 V	92 mm	35 mm	left / right	24 x 270 x 3 mm	12 - 24 V DC	EV1
157359	IQ lock EL motor lock	for tubular-framed doors ; with rectangular face plate 22 x 285 x 3 mm / Operating voltage: 12 - 24 V DC; Current consumption:; 80 mA / 24 V; 160 mA / 12V; max. current consumption (short-term):; 400 mA / 24 V; 1 A / 12 V	92 mm	35 mm	left / right	22 x 285 x 3 mm	12 - 24 V DC	EV1
162566	IQ lock EL motor lock	for tubular-framed doors ; with rectangular face plate 28 x 270 x 3 mm / Operating voltage: 12 - 24 V DC; Current consumption:; 80 mA / 24 V; 160 mA / 12V; max. current consumption (short-term):; 400 mA / 24 V; 1 A / 12 V	92 mm	35 mm	left / right	28 x 270 x 3 mm	12 - 24 V DC	EV1
121822	IQ lock EL motor lock	for tubular-framed doors ; with rectangular face plate 24 x 270 x 3 mm / Operating voltage: 12 - 24 V DC; Current consumption:; 80 mA / 24 V; 160 mA / 12V; max. current consumption (short-term):; 400 mA / 24 V; 1 A / 12 V	92 mm	40 mm	left / right	24 x 270 x 3 mm	12 - 24 V DC	EV1
115021	IQ lock EL motor lock	for tubular-framed doors ; with rectangular face plate 24 x 270 x 3 mm / Operating voltage: 12 - 24 V DC; Current consumption:; 80 mA / 24 V; 160 mA / 12V; max. current consumption (short-term):; 400 mA / 24 V; 1 A / 12 V	92 mm	40 mm	left / right	24 x 270 x 3 mm	12 - 24 V DC	EV1
163328	IQ lock EL motor lock	for tubular-framed doors ; with rectangular face plate 22 x 285 x 3 mm / Operating voltage: 12 - 24 V DC; Current consumption:; 80 mA / 24 V; 160 mA / 12V; max. current consumption (short-term):; 400 mA / 24 V; 1 A / 12 V	92 mm	40 mm	left / right	22 x 285 x 3 mm	12 - 24 V DC	EV1
162567	IQ lock EL motor lock	for tubular-framed doors ; with rectangular face plate 28 x 270 x 3 mm / Operating voltage: 12 - 24 V DC; Current consumption:; 80 mA / 24 V; 160 mA / 12V; max. current consumption (short-term):; 400 mA / 24 V; 1 A / 12 V	92 mm	40 mm	left / right	28 x 270 x 3 mm	12 - 24 V DC	EV1
121823	IQ lock EL motor lock	for tubular-framed doors ; with rectangular face plate 24 x 270 x 3 mm / Operating voltage: 12 - 24 V DC; Current consumption:; 80 mA / 24 V; 160 mA / 12V; max. current consumption (short-term):; 400 mA / 24 V; 1 A / 12 V	92 mm	45 mm	left / right	24 x 270 x 3 mm	12 - 24 V DC	EV1
103641	IQ lock EL motor lock	for tubular-framed doors ; with rectangular face plate 24 x 270 x 3 mm / Operating voltage: 12 - 24 V DC; Current consumption:; 80 mA / 24 V; 160 mA / 12V; max. current consumption (short-term):; 400 mA / 24 V; 1 A / 12 V	92 mm	45 mm	left / right	24 x 270 x 3 mm	12 - 24 V DC	EV1
157360	IQ lock EL motor lock	for tubular-framed doors ; with rectangular face plate 22 x 285 x 3 mm / Operating voltage: 12 - 24 V DC; Current consumption:; 80 mA / 24 V; 160 mA / 12V; max. current consumption (short-term):; 400 mA / 24 V; 1 A / 12 V	92 mm	45 mm	left / right	22 x 285 x 3 mm	12 - 24 V DC	EV1
