Building automation systems

myGEZE Control with GEZE CAN bus and I/O technology * Controller system to connect GEZE CAN products and non bus-capable components to the GEZE building system

myGEZE Control
  • System consists of: basic device, 2x 8-channel digital input terminals, 24 V DC potential distribution terminal, power supply terminal, 2x 2-channel relay output terminals, 2x 4-channel relay output terminals, CAN master terminal, CAN connector, bus end cover
  • System is also available without CAN master terminals with only digital input and output terminals
  • Versions designed as compact I/O systems can also be installed in distribution box systems
  • Coupling terminals allow for the use of multiple offset, decentralised stations for signal detection
  • Comprehensive, project-specific configuration according to user specifications possible (system designation, comment texts, status texts)
  • Time functions and grouped switching commands configurable via scene applications
Show more
  • BACnet alarm concept integrated, can be adjusted to customer-specific requirements
Contact us

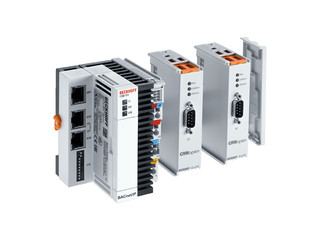

myGEZE Control with GEZE CAN bus and I/O technology

BACnet Building Controller with modular terminal to connect 63 CAN bus devices, 80 digital input signals (24 V DC) and 40 digital output signals (relay)

Application Areas

  • BACnet IP integration in building management systems
  • Networking of GEZE products that can be connected with CAN bus technology
  • Networking of non BUS capable components via digital input and output terminals
  • Products suitable for emergency exit systems: TZ 320, TZ 321 and TZ 322
  • Products suitable for automatic door drives: Slimdrive, Powerturn, TSA 325 NT and Revo.PRIME
  • Products suitable for smoke and heat extraction systems: MBZ 300 in different versions
  • For products with I/O technology like GEZE hold-open systems and third-party products
Go to campaign page
BACnet

Installation situations in reference objects and videos

myGEZE Control

myGEZE Control takes building automation to a new level – optimally aligned with your requirements. For improved safety, sustainable processes, and better comfort.
