TS 4000 E

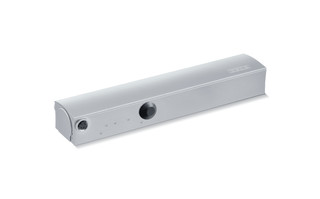

Closer body TS 4000 E * Main body for overhead door closer with link arm EN 1-6 with electric hold-open device

GEZE TS 4000 E Closer Linkage Door closer for single-leaf fire and smoke protection doors    with electrical detection
  • Closing force can be variably adjusted from the front
  • Visual closing force display ensures correct setting
  • Closing seed can be adjusted from the front via valve
  • Latching action can be adjusted via link arm
  • Electric hold-open device
  • Door closer, can be used for right and left hand doors
Show more
  • Supply voltage 24 V DC
  • Same mounting hole pattern as all GEZE TS 4000 closers
Contact us

Application Areas

  • Fire and smoke protection doors
  • Right and left single-action doors
  • Single-action doors up to 1400 mm leaf width
  • Door leaf installation hinge side and transom installation opposite hinge side

Technical data

Closer body TS 4000 E
Closing force in accordance with EN 1154 EN 1 - 6
Leaf width (max.) 1400 mm
Type of installation Door leaf installation hinge side
Opening angle (max.) 180 °
Identical design for DIN left and DIN right Yes
Input voltage 24 V DC
Electrical power consumption 1 W
Duty rating 100 %
Residual ripple 20 %
IP rating IP43
Standard conformity EN 1154:1996/A1:2002/AC:2006, EN 1155
Suitability for fire protection doors Yes
Length 325 mm
Width 46 mm
Height 60 mm
Closing force adjustable Yes, stepless
Adjustable closing speed Yes
Latching action adjustable Yes, via link arm
Back check integrated No
Position of closing force adjustment Front
Visual closing force display Yes
Safety valve againts overload Yes
Thermo-control valves Yes
Hold-open function Electrical
Hold-open device can be overridden Yes
