KFT elbow switch * Plastic elbow switch, IP rating IP20, for activation of automatic doors
- IP rating IP20
- Very flat design with a height of 180 mm
- Large push switch for activation even with elbows
- Optional expansion with transmitting module
- Optional back plate for adhering to smooth surfaces like glass
Application Areas
- Activation of automatic swing, sliding, folding, revolving and curved sliding doors
- Inside
- Surface-mounted installation
Installation situations in reference objects and videos
McDonald's branch Stuttgart Möhringen
LS 990 elbow switch with swing door drive Powerturn F/R on the opposite wall, at McDonalds in Stuttgart-Möhringen. © Jürgen Pollak / GEZE GmbH

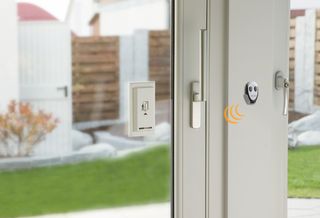

Remote control for activation
Remote control for activation of GEZE automatic doors and window drives using the GEZE wireless programme. © Studio BE / GEZE GmbH
Technical data
| KFT elbow switch | |
| Dimensions | 90 x 179 x 23 mm |
| Switching voltage | 24 V DC |
| Switching current | 1 A |
| IP rating | IP20 |
| Type of installation | Surface-mounted |
| Material | Plastic |
| Service temperature | -20 - 85 °C |
Downloads
LABELLING OBLIGATION: © Jürgen Pollak / GEZE GmbH
LABELLING OBLIGATION: © Studio BE / GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
