Programme switches

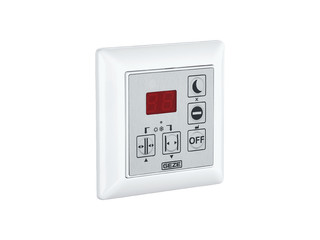

DPS Display programme switch for setting the mode of operation for automatic doors

Display programme switch DPS Programme switches for parameter setting, commissioning and choosing the operating status of autom. doors
  • Unwanted mode of operation changes on escape and rescue route doors can be avoided via number code
  • Display programme switches are also available with key switches
  • 7-segment display shows mode of operations, maintenance info, and error display
  • OFF mode of operation supported by sliding door drives from V3.3
  • OFF mode of operation supported by Powerturn from V1.x
  • OFF mode of operation supported by Slimdrive EMD from V3.4
Show more
  • OFF mode of operation supported by TSA 160 NT from V3.1
Contact us

Application Areas

  • For changing the modes of operation of GEZE automatic door systems

Technical data

DPS
Dimensions 80 x 80 x 11 mm
Power consumption 60 mA
IP rating IP40
Type of installation Flush-mounted installation
Connector cable length 100 m
Service temperature -15 - 50 °C

Variants & Accessories
