ECturn swing door drive system

Guide rail ECturn * For opposite hinge side

Guide rail ECturn Inside
  • Colour EV1 or acc. to RAL
  • Optional with mechanical back check
  • Easy installation
Contact us

Guide rail ECturn

Application Areas

  • Transom or door leaf installation on opposite hinge side
  • Single leaf swing doors
  • Reveal depth up to 30 mm

Technical data

Guide rail ECturn
Height 20 mm
DIN left Yes
DIN right Yes

Downloads

Product shot

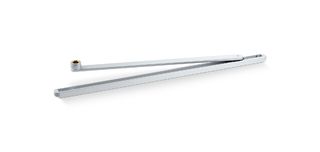

Guide rail ECturn Inside Product shot (822250)
LABELLING OBLIGATION:  © GEZE GmbH

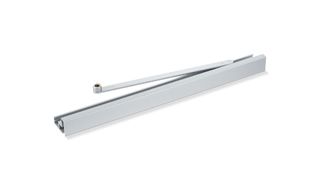

Glass guide rail GEZE ECturn Opposite hinge side Product shot (676940)
LABELLING OBLIGATION:  © GEZE GmbH

Product data sheet

Guide rail ECturn Product data sheet EN
Download (.PDF | 413 KB)

Installation instructions

Installation instructions DE EN (665564)
Download (.PDF | 788 KB)

Wiring diagram

Wiring diagram EN (742086)
Download (.PDF | 53 KB)

Supplementary sheet

Supplementary sheet EN (743471)
Download (.PDF | 60 KB)

Environmental declaration

Environmental declaration EN (2441770)
Download (.PDF | 597 KB)

Variants & Accessories

* Notice about the products displayed

The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
