TS 5000 R

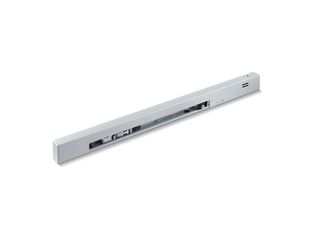

R guide rail TS 5000 * With electrical hold-open device, smoke switch control unit and lever

TS 5000 R guide rail, R guide rail TS 5000 opposite hinge side, TS 5000 R guide rail without electric hold-open device
  • Electric hold-open device in the guide rail with hold-open area of 80°-130°
  • Retention force of the electromechanical hold-open device can be variably adjusted
  • Integrated smoke switch control unit
  • Smoke switch with contamination indicator and adaption of the alarm threshold
  • Additional smoke detectors can be fitted
  • Operating voltage 230 V AC
Show more
  • Horizontally adjustable in the installation position by 4 mm through elongated holes
  • With screwed sliding block
Contact us

With electrical hold-open device, smoke switch control unit and lever

Application Areas

  • Single leaf doors
  • Hold-open systems with integrated hold-open device and smoke switch
  • Installation on hinge side
  • Right and left single-action doors

Technical data

R guide rail TS 5000
Supply voltage 230 V AC
Input voltage 230 V AC
Frequency of supply voltage 50/60 Hz
Duty rating 100 %
IP rating IP20
Standard conformity EN 1155
Approvals General building approval from DIBt as a hold-open system
Length 745 mm
Width 55 mm
Height 30 mm
opening restrictor upgradable Yes
Hold-open function Electrical
Hold-open device can be overridden Yes
Hold-open range 80 ° - 130 °
Smoke switch integrated Yes
Contamination indicator Yes
Adaption of the alarm threshold Yes
Integrated power supply Yes
Height correction possible Yes
Flexible opening restrictor Yes
