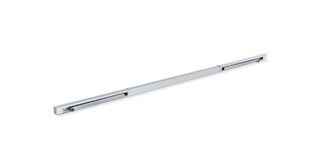

E-ISM guide rail TS 5000 * With closing sequence control, electrical hold-open device on both leaves and levers
- Electric hold-open device in the guide rail with hold-open area of 80°-130°
- Retention force of the electromechanical hold-open device can be variably adjusted
- Operating voltage 24 V DC
- Closing sequence control holds the active leaf in the waiting position until the passive leaf is closed
- Vandalism protection through flexible Bowden cable
- Horizontally adjustable in the installation position by 4 mm through elongated holes
Application Areas
- Double leaf doors with closing sequence control
- Hold-open systems with integrated hold-open device
- Installation on hinge side
- Right and left single-action doors
- Symmetrical and asymmetrical division of door possible
- Up to 2800 mm hinge clearance
- Minimum hinge clearance 1300 mm, minimum width of passive leaf 400 mm
Technical data
| E-ISM guide rail TS 5000 | |
| Input voltage | 24 V DC |
| Electrical power consumption | 4.8 W |
| Duty rating | 100 % |
| Residual ripple | 20 % |
| IP rating | IP43 |
| Minimum hinge clearance | 1300 mm |
| Minimum passive leaf width | 400 mm |
| Standard conformity | EN 1155, EN 1158 |
| Length | 2630 mm |
| Width | 40 mm |
| Height | 30 mm |
| opening restrictor upgradable | Yes |
| Hold-open function | Electrical |
| Hold-open device on the active leaf / passive leaf | Yes / Yes |
| Hold-open device can be overridden | Yes |
| Hold-open range | 80 ° - 130 ° |
| Closing sequence control integrated | Yes |
| Height correction possible | Yes |
| Flexible opening restrictor | Yes |
