TS 2000 NV

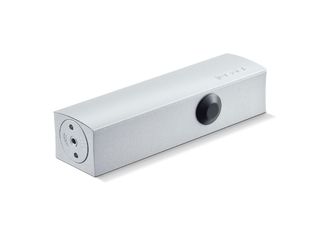

Closer body TS 2000 NV * Main body for overhead door closer with link arm EN 2-4

GEZE TS 2000 NV Schließer
  • Closing force with variable adjustment from the side
  • Closing seed can be adjusted from the front via valve
  • Latching action can be adjusted from the front via valve
  • Door closer, can be used for right and left hand doors
  • Door closer, can be used for leaf and transom installation
  • Minimal installation effort due to low number of individual parts and quick setting
Contact us

Application Areas

  • Fire and smoke protection doors
  • Right and left single-action doors
  • Single-action doors up to 1100 mm leaf width
  • Door leaf installation hinge side and transom installation opposite hinge side
  • Door leaf installation opposite hinge side in parallel arm installation possible

Technical data

Closer body TS 2000 NV
Closing force in accordance with EN 1154 EN 2 - 4
Leaf width (max.) 1100 mm
Type of installation Door leaf installation hinge side, Transom installation opposite hinge side, Door leaf installation opposite hinge side
Opening angle (max.) 180 °
Identical design for DIN left and DIN right Yes
Standard conformity EN 1154:1996/A1:2002/AC:2006
Suitability for fire protection doors Yes
Length 226 mm
Width 51 mm
Height 60 mm
Closing force adjustable Yes, stepless
Adjustable closing speed Yes
Latching action adjustable Yes, via valve
Back check integrated No
Position of closing force adjustment At the side
Thermo-control valves Yes
