Boxer EFS 4-6

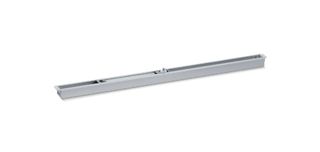

Guide rail Boxer EFS 20.7 mm * With an overall height of 20.7 mm for Boxer EFS 4-6

Guide rail Boxer EFS 20.7 mm
  • With screwed slide block
  • Without lever for use with free swing door closer
Contact us

Guide rail Boxer EFS 20.7 mm

Application Areas

  • Single leaf doors
  • Integrated installation
  • Right and left single-action doors
  • For combination with Boxer EFS 4-6

Technical data

Guide rail Boxer EFS 20.7 mm
Length 480 mm
Width 31 mm
Height 20.7 mm
Opening restrictor integrated Yes

Downloads

Variants & Accessories

* Notice about the products displayed

The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
