Powerdrive PL * Automatic linear sliding door system for large and heavy doors of up to 200 kg leaf weight
- Very powerful drive for large, heavy leaves and wide opening widths
- Can be networked, and integrated into the building automation via open standard (BACnet)
- Independent error recognition and recording
- Adjustment options for all door movement parameters
- Freely configurable inputs and outputs for different functions
- Integrated battery for emergency opening and closing in the event of a power failure
- Various mechanical and electrical locks are optionally available
Application Areas
- Single and double leaf sliding door systems
- Interior and exterior doors with high access frequency
- Opening widths from 700 to 3000 mm possible
- Door leaf weights up to 200 kg per leaf
- Suitable profile systems are fine-framed profile systems with ISO and mono glass, toughened safety glass clamping profile, on-site frame and wooden leaves
- Suitable for various profile systems
Installation situations in reference objects and videos
Sliding door solutions from GEZE, product video
ECdrive T2, Slimdrive and Powerdrive: Tailored, efficient and open to the demands of tomorrow.

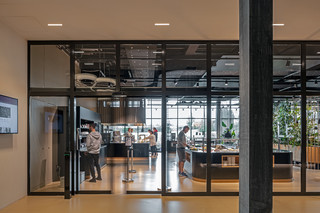

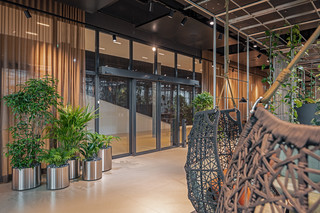

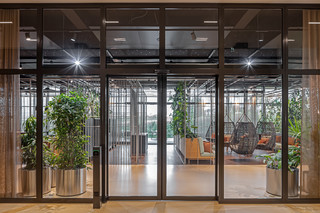

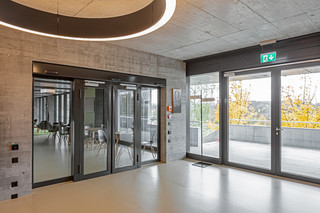

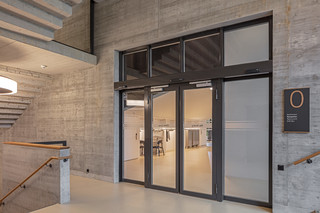

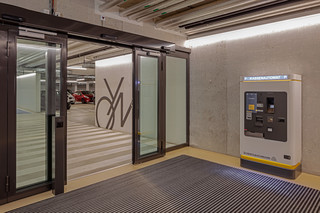

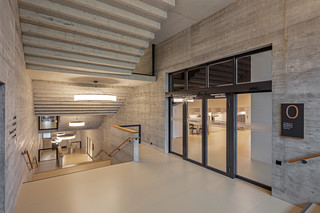

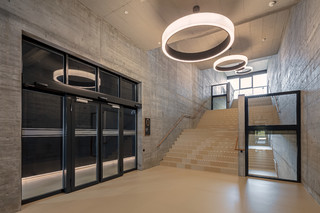

Automatic sliding door Powerdrive PL EI30, Athletics center Oym, Switzerland
Automatic sliding door system for fire protection doors with resistance class EI30 © Lorenz Frey / GEZE GmbH
Automatic sliding door Powerdrive PL EI30, Athletics center Oym, Switzerland
Automatic sliding door system for fire protection doors with resistance class EI30 © Lorenz Frey / GEZE GmbH
Automatic sliding door Powerdrive PL EI30, Athletics Centre Oym, Switzerland
Automatic sliding door system for large and heavy fire protection doors with resistance class EI30. © Lorenz Frey / GEZE GmbH
Automatic sliding door Powerdrive PL EI30, Athletics center Oym, Switzerland
Automatic sliding door system for fire protection doors with resistance class EI30 © Lorenz Frey / GEZE GmbH
Automatic sliding door Powerdrive PL EI30, Athletics center Oym, Switzerland
Automatic sliding door system for fire protection doors with resistance class EI30 © Lorenz Frey / GEZE GmbH
Automatic sliding door Powerdrive PL EI30, Athletics Centre Oym, Switzerland
Automatic sliding door system for heavy and large fire protection doors with the resistance class EI30 © Lorenz Frey / GEZE GmbH
Automatic sliding door Powerdrive PL EI30, Athletics center Oym, Switzerland
Automatic sliding door system for fire protection doors with resistance class EI30 © Lorenz Frey / GEZE GmbH
Automatic sliding door Powerdrive PL EI30, Athletics center Oym, Switzerland
Automatic sliding door system for fire protection doors with resistance class EI30 © Lorenz Frey / GEZE GmbH
Automatic sliding door Powerdrive PL EI30, Athletics center Oym, Switzerland
Automatic sliding door system for fire protection doors with resistance class EI30 © Lorenz Frey / GEZE GmbH
Automatic sliding door Powerdrive PL EI30, Athletics center Oym, Switzerland
Automatic sliding door system for fire protection doors with resistance class EI30 © Lorenz Frey / GEZE GmbH
Automatic sliding door Powerdrive PL EI30, Athletics center Oym, Switzerland
Automatic sliding door system for fire protection doors with resistance class EI30 © Lorenz Frey / GEZE GmbH
Automatic sliding door Powerdrive PL EI30, Athletics center Oym, Switzerland
Automatic sliding door system for fire protection doors with resistance class EI30 © Lorenz Frey / GEZE GmbH

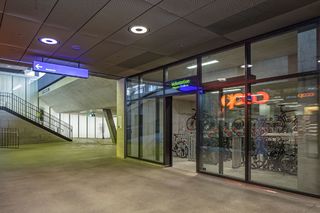

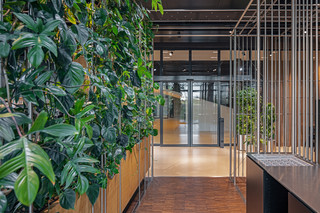

Sliding door Powerdrive PL EI30, Zurich Railway Station Switzerland
Automatic linear sliding door system for large and heavy doors with independent fault detection and logging © Lorenz Frey / GEZE GmbH
Sliding door Powerdrive PL EI30, Railway station Zurich Oerlikon Switzerland
Automatic linear sliding door system for large and heavy doors with independent fault detection and logging © Lorenz Frey / GEZE GmbH
Automatic sliding door drive Powerdrive installed at VGH Versicherungen Hannover (insurance company)
Automatic linear sliding door system with very powerful drive for large, heavy door leaves and large opening widths. © Lothar Wels / GEZE GmbH

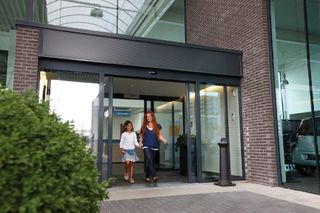

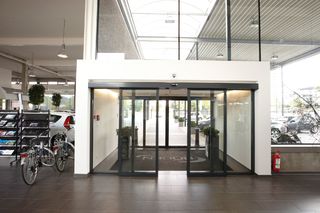

Door drive Powerdrive, Autohaus Boden, Hasselt, Belgium
Automatic linear sliding door system with very powerful drive for large, heavy door leaves and large opening widths. © GEZE GmbH
Automatic sliding door drive Powerdrive in Autohaus Boden (car dealer) , Hasselt, Belgium
Automatic linear sliding door system with very powerful drive for large, heavy door leaves and large opening widths. © GEZE GmbH
Technical data
| Powerdrive PL | |
| For 1-leaf door systems | Yes |
| For 2-leaf door systems | Yes |
| Fine-framed insulating glass | Yes |
| MONO glass fine-framed | Yes |
| ESG clamping profile | Yes |
| Framed leaf (on site) | Yes |
| Wooden leaf (on site) | Yes |
| Height | 150 mm |
| Depth | 185 mm |
| Leaf weight (max.) 1-leaf | 200 kg |
| Leaf weight (max.) 2-leaf | 200 kg |
| Opening width 1-leaf | 700 mm - 3000 mm |
| Opening width 2-leaf | 800 mm - 3000 mm |
| Service temperature | -15 - 50 °C |
| IP rating | IP20 |
| Disconnection from mains | Main switch in the drive |
| Standard conformity | DIN 18650. DIN EN ISO 13849: Performance Level D. EN 16005 |
Downloads

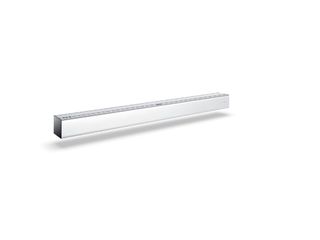

Product shot

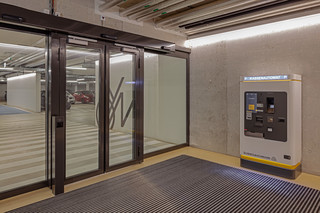

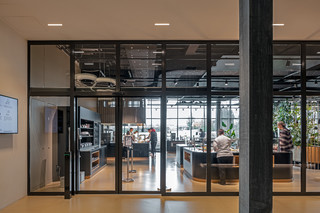

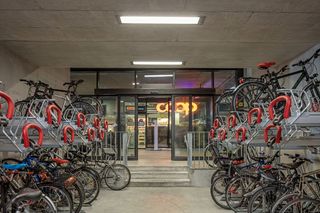

Installation situation
Product data sheet
User manual
Installation instructions
Wiring diagram
Certificate
Supplementary sheet
Declaration of conformity
Inspection certificate
Safety analysis
Tender texts

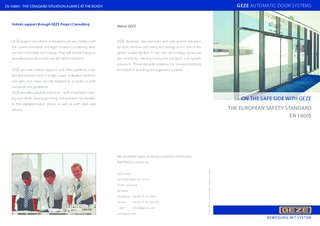

Flyer/folder
Product brochure
Environmental declaration

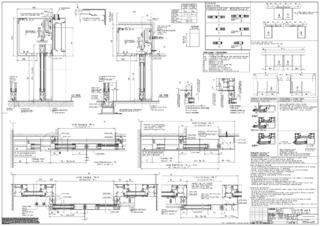

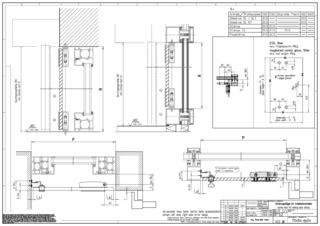

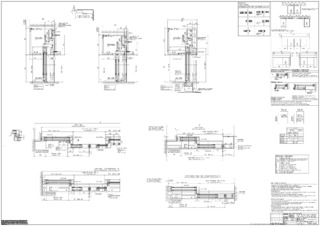

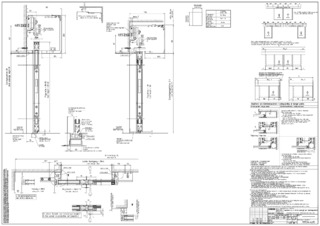

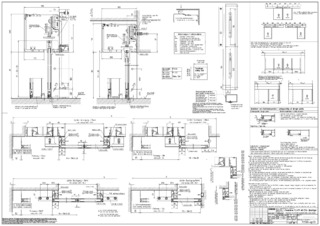

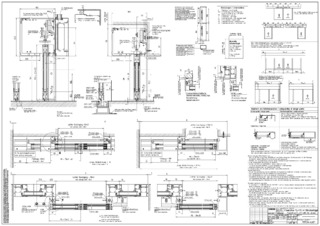

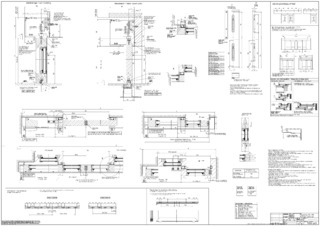

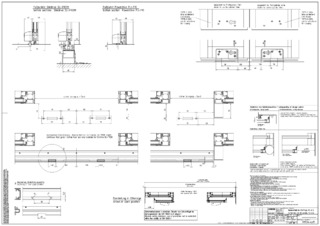

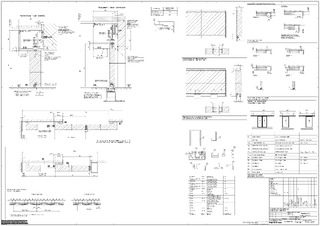

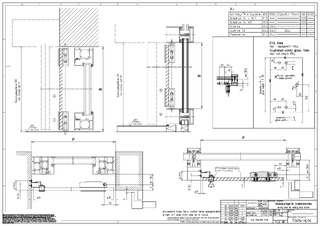

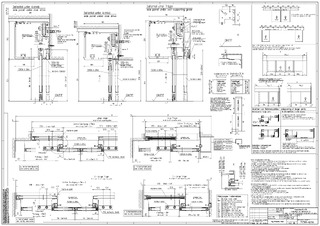

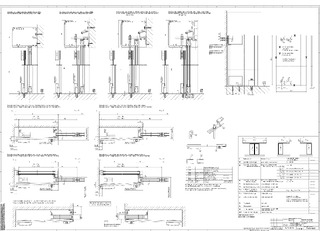

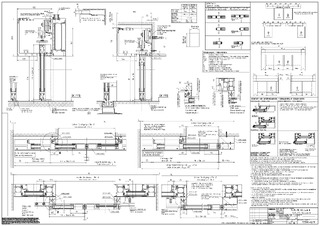

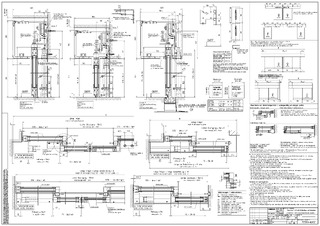

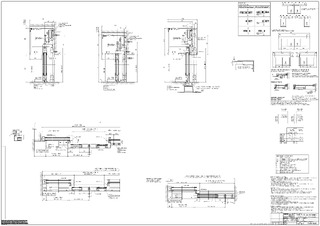

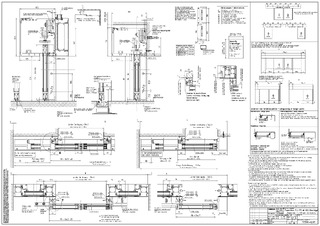

Installation drawing
Errors/Measures
Variants & Accessories
